Heavy Duty AccumulatorHeavy-duty accumulator up to 200 m capacity for wide webs

ACC-HD Heavy Duty Accumulator — Heavy-duty accumulator up to 200 m capacity for wide webs (1/2)1 / 2
ACC-HD Heavy Duty Accumulator Ansicht 1

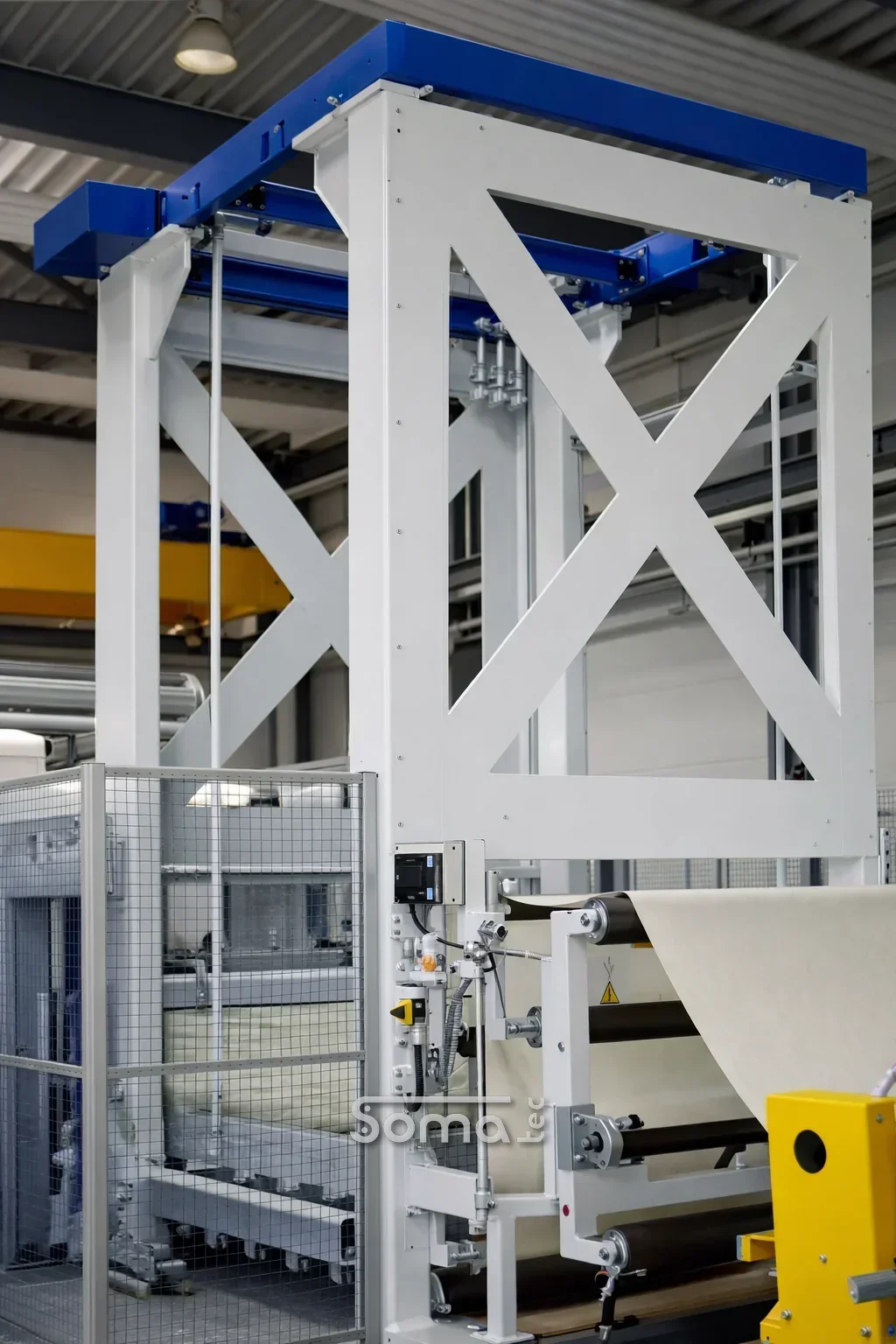

ACC-HD Heavy Duty Accumulator Ansicht 2

The SOMATEC ACC-HD is the heavy-duty web accumulator for particularly heavy materials such as thick PVC flooring, roofing membranes and heavy composite films. Reinforced roller bearings, robust frame and higher drive power — designed for materials where standard accumulators reach their mechanical limits.

Technical Documentation

Brochure
Manual
STEP / Drawing

Technical Data

Max. Production Speed200 m/min
Max. Working Width4.500 mm
Storage Capacityup to 200 m
DriveSpindle
DesignDouble loop

Benefits

Highest storage capacity up to 200 m web length for long roll change times
Large working widths up to 4,000 mm for wide webs in nonwoven and film production
Compact design despite high storage capacity through double-loop design
Sensitive control through mechanical or pneumatic weight compensation
Driven pull rolls on infeed and outfeed for reliable web transport
Expandable with web edge guiding and pneumatic option

Available Options

Comb Design yes
Pull Rolls yes
Pneumatic Optionoptional
Web Edge Guidingoptional
More options on request

Applications

SOMATEC web accumulators ensure continuous material flow in every converting line — the buffer between process steps.

Coating lines — Buffering between unwinder and coating station for uninterrupted roll changes
Lamination lines — Compensating speed differences between lamination and winding station
Printing lines — Continuous web run even during roll changes or format changes
Calendering lines — Buffering between calender and winding for constant line speed
Converting lines — Wherever two process steps operate at different speeds

Why the ACC-HD?

With up to 200 m storage capacity and 4,500 mm working width, the ACC-HD is the most powerful accumulator in the SOMATEC series. The double-loop design enables compact footprint despite high capacity. Mechanical or pneumatic weight compensation of the roller carriage ensures sensitive control.

Typical Configurations

Nonwoven line: ACC-HD with double loop and 200 m capacity for long roll change times with wide webs
Heavy-duty production: ACC-HD with infeed and outfeed pull rolls and web edge guiding
Large format: ACC-HD with up to 4,500 mm working width and pneumatic weight compensation

Why SOMATEC

Over 35 years of specialization — SOMATEC is one of the leading manufacturers of winding machines and custom converting machinery. Decades of experience in development and manufacturing for the most demanding industrial applications.
Made in Germany — Robust construction, precise mechanics and durable components. Designed and manufactured in Hameln, Germany — for 24/7 industrial operation in plastics, nonwovens, paper and flooring industries.
Modular winding components — Versatile functional units enable customer-specific configurations. From compact basic units to high-performance lines — every machine is precisely tailored to the customer's process.
Proven with international market leaders — References in nonwoven, paper, films, composites, flooring, adhesive tapes, artificial leather and technical textiles. SOMATEC machines run worldwide in the most demanding production lines.

Frequently Asked Questions

When is the heavy-duty accumulator needed? — When particularly heavy webs (e.g. thick PVC flooring, roofing membranes, heavy composite films) need to be buffered. The ACC-HD is designed for high web weights and tensions.
What structurally distinguishes the ACC-HD? — Reinforced roller bearings, more robust frame structure and higher drive power. For applications where standard accumulators reach their mechanical limits.
Can SOMATEC recommend the right accumulator variant? — Yes — we analyze material, web weight, speed and buffer requirements and recommend the appropriate ACC variant.
