Turret WinderCost-effective non-stop winding with winding shafts up to 3,000 mm working width
1 / 3

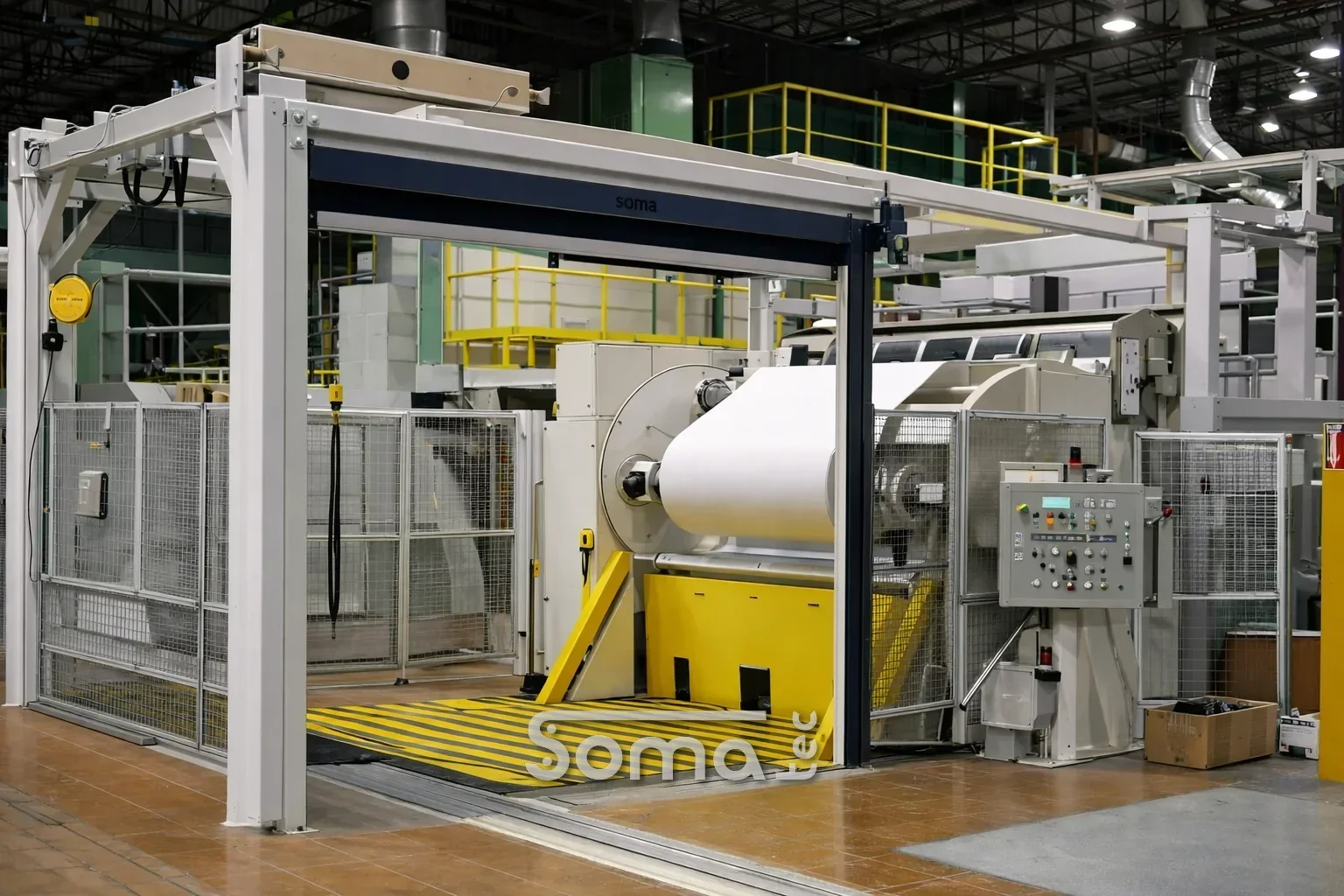

The automatic turret winder ATW-E is the cost-effective variant with winding shaft support. Its main application is in printing lines as well as in paper finishing and laminated film processing. Other applications where web-form material must be continuously wound are also easily handled. The machine concept can be optimally adapted to individual requirements and perfectly integrated into new or existing production lines.
Technical Documentation
Brochure
Manual
STEP / Drawing
Technical Data
Max. Production Speed600 m/min
Max. Working Width3.000 mm
Max. Roll Diameter1.500 mm
Max. Roll Weight3.500 kg
Min. Core Diameter3", 4", 6" or 4" steel core
Cutting SystemScissors cut, razor blade cut
Roll SupportWith winding shafts
Benefits
Non-stop winding through automatic roll change at full production speed with TAC or NTC system
Perfect winding quality through selectable contact or gap winding with driven lay-on roll and motorized rider rolls
High roll weights with small core diameters through roll support roller — also suitable for multiple-up winding
Flexible core support for 3", 4" and 6" cardboard or steel cores with expanding shaft operation and optional friction winding
Both winding directions possible — antistatic equipment for sensitive materials
Efficient roll handling through roll removal cart with up to 25 m travel, optional roll removal forks and external winding shaft extraction device
Expandable base machine — the ATW-E can be equipped with edge trim suction, in-line slitting unit and automatic finished roll handling
Available Options
Roll ChangeTAC / NTC
Contact/Gap Winding yes
Lay-on Rolldriven
SlittingScissors / knife
Roll Support Rolleroptional
Motorized Rider Rollsoptional
Antistatic Equipmentoptional
Roll Removal Cartoptional
Shaft Extraction Deviceoptional
More options on request
Applications
The SOMATEC ATW-E automatically winds virtually all web-based materials — the economical standard solution with winding shaft support for printing, coating and converting lines.
Film converting — Packaging films, shrink films, technical films and barrier films
Nonwoven processing — Nonwovens for hygiene, medical and filtration products
Paper and board processing — Coating, lamination and printing lines
Adhesive tape industry — Feeding of tape substrates, release liners and self-adhesive webs
Flooring production — PVC flooring (LVT, vinyl), carrier webs and decorative films
Artificial leather production — PVC and PU artificial leather webs
Technical textiles — Geotextiles, filter materials and coated textiles
Roofing membranes & construction films — Bitumen sheets, vapor barriers and sealing films
Why the ATW-E?
The ATW-E is the cost-effective variant with winding shafts, offering a wide range of equipment options for perfect winding results. Selectable contact or gap winding, motorized rider rolls and antistatic equipment ensure optimal quality. The automatic roll change takes place at full production speed — depending on the system with core preparation (TAC, up to 600 m/min) or without (NTC, up to 350 m/min). The machine concept can be individually adapted to your requirements.
Typical Configurations
Converting line: SOMATEC UW-E unwinder + ATW-E winder with splice synchronization for loss-free non-stop operation
Paper finishing: ATW-E with NTC system for roll change without core preparation and roll removal cart with up to 25 m travel
High automation: ATW-E with in-line slitting unit, roll support roller and automatic finished roll and winding shaft handling
Why SOMATEC
Over 35 years of specialization — SOMATEC is one of the leading manufacturers of winding machines and custom converting machinery. Decades of experience in development and manufacturing for the most demanding industrial applications.
Made in Germany — Robust construction, precise mechanics and durable components. Designed and manufactured in Hameln, Germany — for 24/7 industrial operation in plastics, nonwovens, paper and flooring industries.
Modular winding components — Versatile functional units enable customer-specific configurations. From compact basic units to high-performance lines — every machine is precisely tailored to the customer's process.
Proven with international market leaders — References in nonwoven, paper, films, composites, flooring, adhesive tapes, artificial leather and technical textiles. SOMATEC machines run worldwide in the most demanding production lines.
Frequently Asked Questions
What is the difference between unwinder and winder? — The unwinder feeds the raw material into the line. The winder (rewinder) takes up the finished product at the line end. Both are winding machines but with reversed function.
What does automatic turret winder mean? — An automatic turret winder changes the winding position on-the-fly — without stopping the line. When a roll is full, the turret automatically swings and the next empty core takes over. Essential for continuous production.
Which industries is the ATW-E suitable for? — Adhesive tape production, nonwoven processing, film coating, packaging converting, technical textiles, artificial leather production and flooring finishing. Wherever continuous winding under controlled conditions is required.
Can the ATW-E be integrated into existing lines? — Yes — SOMATEC turret winders are available as new installations and as retrofit solutions for existing converting lines. SOMATEC assesses the installation situation and coordinates the technical interface.
How is the right machine selected? — SOMATEC analyzes your process: material type, web width, line speed, roll weight, web tension requirements and space constraints. Then SOMATEC recommends the appropriate variant and supports the project through to commissioning.
