Heavy-Duty Turret UnwinderFor heavy rolls up to 3,500 kg and varying widths
1 / 4

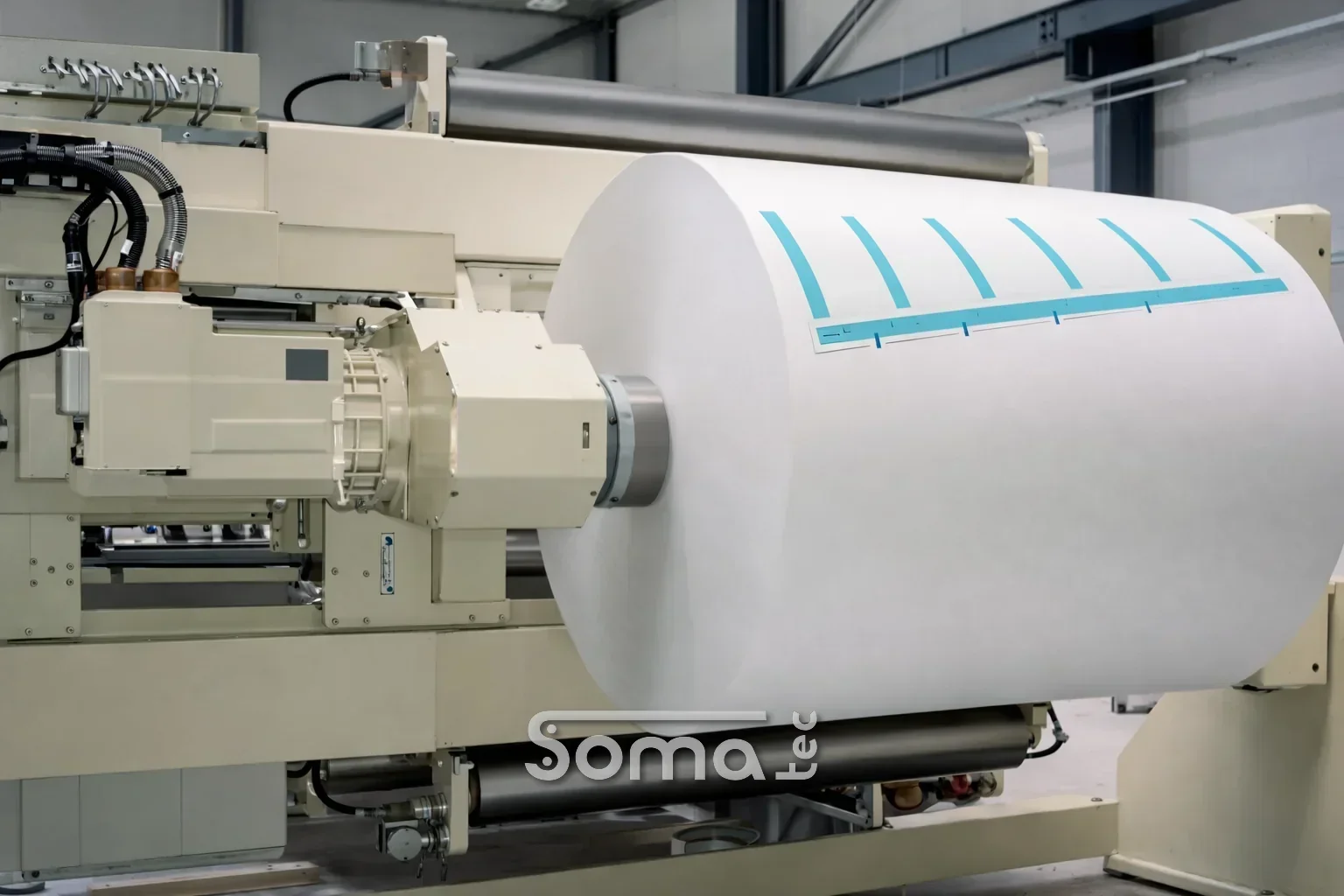

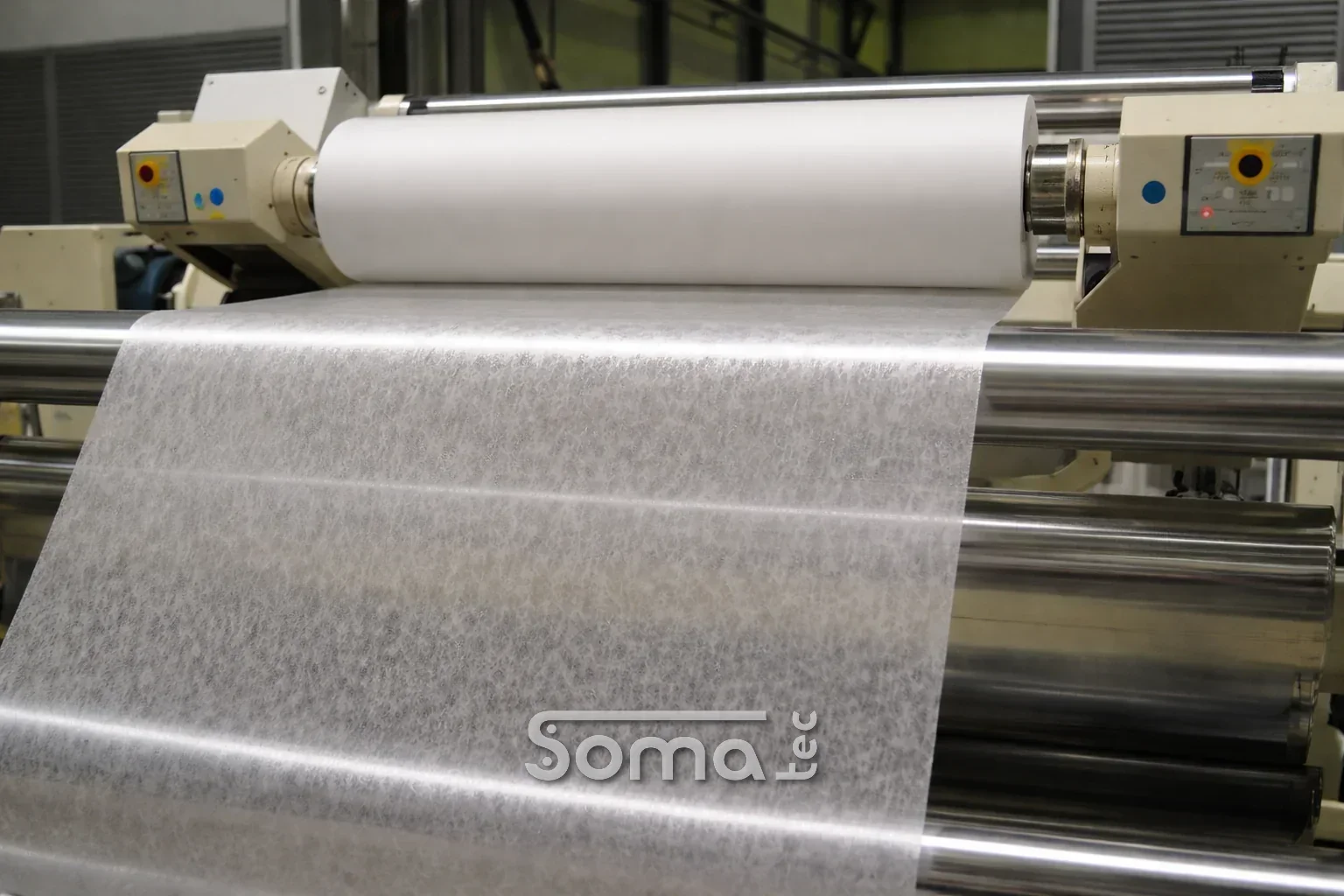

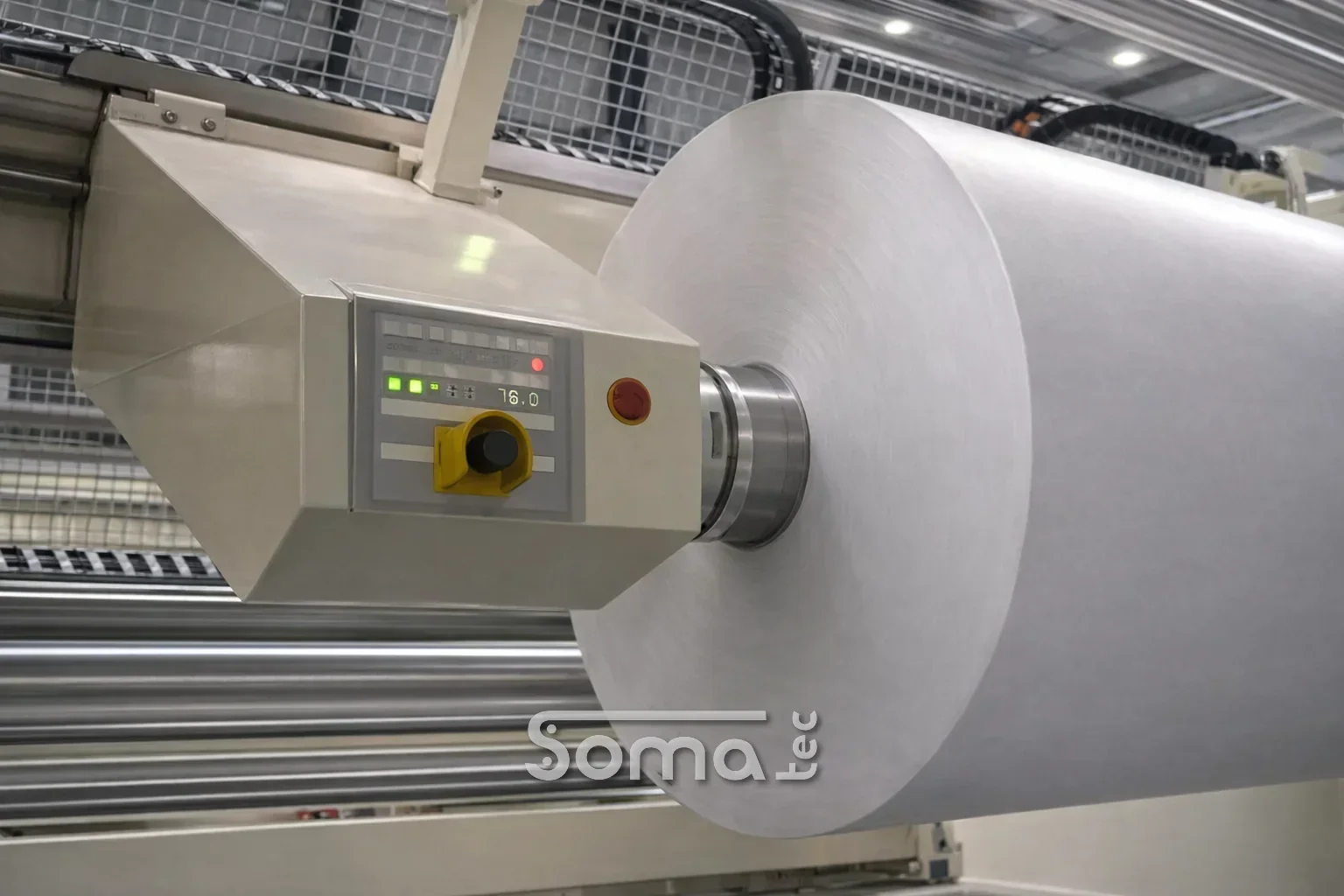

The SOMATEC UW-S is the heavy-duty turret unwinder for particularly heavy rolls up to 3,500 kg and wide materials up to 2,500 mm. Motor-driven support arms clamp the roll centered and compensate width differences steplessly — without mechanical adapters. Automatic overlap splice at full production speed up to 600 m/min, optionally in both unwinding directions.
Technical Documentation
Brochure
Manual
STEP / Drawing
Technical Data
Max. Production Speed600 m/min
Max. Working Width2.500 mm
Max. Roll Diameter1.500 mm
Max. Roll Weight3.500 kg
Min. Core Diameterfrom 152.4 (6") mm
Roll SupportShaftless, motor-driven support arms
Benefits
Minimized roll handling through large rolls up to 1,500 mm diameter and roll weights up to 3,500 kg
Non-stop unwinding through automatic overlap splice at maximum production speed
Low-loss connection through minimal residual lengths and short overlap splice
Expandable base machine — the UW-S can be equipped with various optional function units (lifting arms, lifting table and cart for roll loading, both unwinding directions)
Available Options
Automated Splicingyes, overlap
Web Guidingoptional
Width Adjustmentyes, continuous
Lifting Armsoptional
Lifting Table / Cartoptional
Both Unwinding Directionsoptional
More options on request
Applications
The SOMATEC UW-S is designed for particularly heavy rolls and wide materials. It processes all web-based materials up to 3,500 kg roll weight and 2,500 mm material width — from flooring through roofing membranes to heavy composites.
Flooring production — Heavy PVC flooring (LVT, vinyl), heterogeneous flooring and carrier webs
Roofing membranes & construction films — Heavy bitumen sheets, vapor barriers and sealing films
Artificial leather production — Heavy PVC and PU artificial leather webs
Technical textiles — Heavy geotextiles, reinforcement fabrics and coated textiles
Film converting — Thick composite films, heavy packaging films and technical films
Nonwoven processing — Heavy nonwovens and filtration materials
Automotive — Interior trim materials and technical composite films
Paper and board processing — Heavy paper rolls in coating and lamination lines
Why the UW-S?
Robust construction, sophisticated roll change systems and perfect control make the SOMATEC UW-S an absolutely process-reliable component. The motor-driven mandrel carriages center-clamp rolls of widely varying widths — without adapters or manual changeover. Roll weights up to 3,500 kg and speeds up to 600 m/min are safely handled. As an expandable base machine, the UW-S can be equipped with lifting arms, lifting table and cart for roll loading, as well as both unwinding directions.
Typical Configurations
Heavy-duty converting: UW-S unwinder + SOMATEC ATW-E/ATW-C winder for non-stop operation with heavy rolls and variable widths
Coating and lamination line: UW-S with lifting arms and lifting table for ergonomic roll loading with heavy roll weights
Flexible production: UW-S with motor-driven width adjustment for quick changeover between different roll widths without retooling
Why SOMATEC
Over 35 years of specialization — SOMATEC is one of the leading manufacturers of winding machines and custom converting machinery. Decades of experience in development and manufacturing for the most demanding industrial applications.
Made in Germany — Robust construction, precise mechanics and durable components. Designed and manufactured in Hameln, Germany — for 24/7 industrial operation in plastics, nonwovens, paper and flooring industries.
Modular winding components — Versatile functional units enable customer-specific configurations. From compact basic units to high-performance lines — every machine is precisely tailored to the customer's process.
Proven with international market leaders — References in nonwoven, paper, films, composites, flooring, adhesive tapes, artificial leather and technical textiles. SOMATEC machines run worldwide in the most demanding production lines.
Frequently Asked Questions
When do I need a heavy-duty turret unwinder? — When your rolls are particularly heavy (e.g. >2 tons), when web tension must be exceptionally high, or when very wide webs (>2 m) are processed. The UW-S is the most robust variant of the SOMATEC turret unwinder family.
What roll weights can the UW-S handle? — The UW-S is designed for heavy rolls. Exact specifications are determined customer-specifically — depending on material, width and production requirements.
How does the UW-S differ structurally from the UW-E? — Reinforced bearings, more robust turret drive and higher tension control. The construction is designed for maximum durability in heavy-duty operation.
In which industries is the UW-S used? — Flooring production, technical textiles, heavy composite films, roofing membranes and automotive supply industry.
Can SOMATEC advise on the design? — Yes — we analyze the requirements and support the specification as co-engineering partner with SOMATEC.
